Modeling Requirements with SysML


This article will explore in depth the specific constructs proposed by SysML (as compared to UML) to model both requirements and traceability. We will see how the Requirement diagram enables the capture of requirements hierarchies and derivations, and how the “satisfy” and “verify” relationships allow a modeler to relate a requirement to either a design element that satisfies it or a test case that verifies it. We will also give practical recommendations on how to best use these particular modeling constructs.

1. What is SysML?

1. Origins of SysML

In all domains, those building complex systems have already been modelling for a long time:

  • to harness complexity
  • to reduce risks
  • to communicate.

SysML™ is a general-purpose graphical modeling language for specifying, analyzing, designing and verifying complex systems that may include hardware, software, information, personnel, procedures and facilities. It is a specialized UML profile targeted to system engineering.

To visualize the relationship between the UML and SysML languages, consider the Venn diagram shown in Figure 1, where the sets of language constructs that comprise the languages are shown as the circles marked “UML” and “SysML” respectively. The intersection of the two circles, shown by the region marked “UML reused by SysML”, indicates the UML modeling constructs that SysML reuses. The region marked “SysML extensions to UML” in Figure 1 indicates the new modeling constructs defined for SysML that have no counterparts in UML, or which replace UML constructs. Note that there is also a part of UML that is not required to implement SysML, which is shown by the region marked “UML not required by SysML”.

Figure 1: Relationship between SysML and UML – from [OMG1]

2. SysML Diagram Types

The nine SysML diagram types are identified in Figure 2 (white boxes) and summarized below.

Figure 2: SysML Diagram Types – from [OMG2]

The behavior diagrams include the use case diagram, activity diagram, sequence diagram and state machine diagram. A use case diagram provides a high-level description of functionality that is achieved through interaction among systems or system parts. The activity diagram represents the flow of data and control between activities. A sequence diagram represents the interaction between collaborating parts of a system. The state machine diagram describes the state transitions and actions that a system or its parts perform in response to events.

The system structure is represented by block definition diagrams and internal block diagrams. A block definition diagram describes the system hierarchy and system/component classifications. The internal block diagram describes the internal structure of a system in terms of its parts, ports and connectors. The package diagram is used to organize the model. The parametric diagram represents constraints on system property values such as performance, reliability and mass properties, and serves as a means to integrate the specification and design models with engineering analysis models.

SysML includes a graphical construct to represent text-based requirements and relate them to other model elements. The requirement diagram and all its associated concepts will be detailed in the next chapter. For more information about SysML, a useful reference is [FMS].

2. SysML new constructs for modeling text-based requirements

SysML defines specific elements for modeling requirements and their relationships which did not exist in the more well-known UML. It also includes relationships to other artifacts such as test cases or design blocks, for traceability purposes.

All these constructs will be explained in detail in the following paragraphs.

1. Requirement concept in SysML

Let us quote the SysML Specification [OMG3]: “A requirement specifies a capability or condition that must (or should) be satisfied. A requirement may specify a function that a system must perform or a performance condition a system must achieve”.

Use cases (which existed in UML) are effective for capturing the functional requirements, but not suitable for expressing non-functional requirements. The incorporation of text-based requirements into SysML effectively accommodates a broad range of requirements.

Standard SysML Requirement

A standard SysML requirement includes properties to specify its unique identifier and text requirement itself, as shown in figure 3. Additional properties such as verification status, priority, etc., can also be specified by the user.

Figure 3: A SysML requirement
Requirement Subclasses

Modelers can customize requirements taxonomies by defining additional subclasses of the Requirement stereotype. For example, a modeler may want to define requirements categories to represent operational, functional, interface, performance, physical, storage, activation/deactivation, design constraints and other specialized requirements such as reliability and maintainability, or to represent a high level stakeholder need. The stereotype enables the modeler to add constraints that restrict the types of model elements that may be assigned to satisfy the requirement. For example, a functional requirement may be constrained so that it can only be satisfied by a SysML behavior such as an activity, state machine or interaction.

Requirement Packages

Requirements can be organized into a package structure. A typical structure may include a top-level package for all requirements. Each nested package within this top-level package may contain requirements from different specifications (system, subsystem, component, etc.). Each specification package contains the text-based requirements for that specification. This package structure corresponds to a typical specification tree, which is a useful artifact for describing the scope of requirements for a project.

2. Requirement Relationships

Capturing requirements in your system model is useful. However, the greater value lies in the relationships you create among the requirements and other model elements.

Seven requirements relationships are specified that enable the modeler to relate requirements to one another as well as to other model elements. These include relationships for defining a requirements hierarchy, deriving requirements, satisfying requirements, verifying requirements and refining requirements. However, the semantics of these relations are not defined in a formal sense and are subject to interpretation. Therefore it is necessary to define some kind of heuristics, guidelines and practices as to how these relationships should be used in order to have a consistent model.

All available relationships in SysML will be explained in detail in the next paragraphs.

Containment (Composite Requirement)

A Composite Requirement can contain sub-requirements in terms of a requirements hierarchy, specified using the namespace containment mechanism. A composite requirement may state that the system shall do A and B, which can be decomposed into the child requirements that the system shall do A, and the system shall do B (as shown in figure 4).

Figure 4: A composite SysML requirement

The partitioning of composite requirements into simpler requirements helps establish full traceability and show how individual requirements are the basis for further derivation, as well as how they are satisfied and verified.

Derive Relationship

Derived requirements generally correspond to requirements at the next level of the system hierarchy. A simple example would be a vehicle acceleration requirement that is analyzed to derive requirements for engine power, etc., as shown in figure 5.

Figure 5: Example of derive relationship

It is also used to represent a relationship between requirements at the same level of the hierarchy but at different levels of abstraction. For example, the hardware or software requirements that are originally specified by the systems engineering team may be analyzed by the hardware or software team to derive more detailed requirements that reflect additional implementation considerations or constraints. The more detailed requirements from the hardware or the software team may be related to the original requirements, specified by the system team, through derive relationships.

Refine Relationship

The refine requirement relationship can be used to describe how a model element, or set of elements, can be used to further refine a requirement. For example, a use case or activity diagram may be used to refine a text-based functional requirement, as shown in figure 6. Alternatively, it may be used to show how a text-based requirement refines a model element. In this case, some elaborated text could be used to refine a less fine-grained model element.

Figure 6: Example of refine relationship

A refinement should clarify the requirement’s meaning or context. It is distinguished from a derive relationship in that a refine relationship can exist between a requirement and any other model element, whereas a derive relationship can only exist between requirements. In addition, a derive relationship is intended to impose additional constraints based on analysis.

Satisfy Relationship

The satisfy relationship describes how a design or implementation model concept satisfies one or more requirements. A system modeler can then specify the system design elements that are intended to satisfy the requirement, as shown in figure 7.

Figure 7: Example of satisfy relationship

An important point, however, is that an assertion does not constitute proof. The satisfy relationship is simply a mechanism to allocate a requirement to a structure. The proof that the requirement has indeed been satisfied will come from test cases (see next paragraph).

Verify Relationship

The verify relationship defines how a test case or other model element verifies a requirement, as shown in figure 8. In SysML, a test case or other named element can be used as a general mechanism to represent any of the standard verification methods for inspection, analysis, demonstration or test.

Figure 8: Example of verify relationship
Copy Relationship

There is a real need for requirement reuse across product families and projects. Typical scenarios are regulatory, statutory or contractual requirements that are applicable across products and/or projects and requirements that are reused across product families.

SysML introduces the concept of a slave requirement, as shown in figure 9.

Figure 9: Example of copy relationship

The text property of the copied requirement is a read-only copy of the text property of the source requirement, but the copied requirement has a different id and may be contained in a different namespace.

Trace Relationship

A generic trace requirement relationship provides a general-purpose relationship between a requirement and any other model element, as shown in figure 10. The semantics of trace include no real constraints and are therefore quite weak. As a result, I usually recommend that you instead use one of the other (more meaningful) requirements relationships presented before.

Figure 10: Example of trace relationship

However, the trace relationship can be useful for relating requirements to source documentation or for establishing a relationship between specifications in a specification tree.

Warning: Arrow direction!
Most requirement relationships in SysML are based on the UML dependency. The arrow points from the dependent model element (client) to the independent model element (supplier). Hence in SysML, the arrow’s direction is opposite to that typically used for requirements flows, where the higher-level requirement points to the lower-level requirement. Take care with this when you draw your relationships!

3. Requirement Diagrams and Tables

SysML provides modeling constructs to represent text-based requirements and relate them to other modeling elements. The requirements diagram can depict the requirements in graphical, tabular or tree structure format. A requirement can also appear on other diagrams to show its relationship to other modeling elements.

The requirement diagram has a distinct disadvantage when viewing large numbers of requirements. The traditional method of viewing requirements in textual documents is a more compact representation than viewing them in a diagram.

SysML embraces the concept of displaying the results of model queries in tables, as well as using tables as a data input mechanism, but the specifics of generating tables is left to the tool implementer. The tabular format can be used to represent the requirements, their properties and relationships, as shown in figure11, and may include:

  • Requirements with their properties in columns
  • A column that includes the supplier for any of the dependency relationships (Derive, Verify, Refine, Trace)
  • A column that includes the model elements that satisfy the requirement
  • Etc.
# Id Name Text Owner Refines Verified By
1 1.4 Vehicle Performance 1 Automobile Specification
2 1.4.1 Braking Distance 1.4 Vehicle Performance
3 1.4.6 Top Speed 1.4 Vehicle Performance
4 1.4.7 Turning Radius 1.4 Vehicle Performance
5 1.4.8 Maximum Acceleration The vehicle shall accelerate from 0–60 mph in less than 8 seconds under specified conditions 1.4 Vehicle Performance Drive Vehicle Max Acceleration
6 2.1 Engine Power The max engine horsepower shall be greater than … 2. Engine Specification
Figure 11: Example of Requirement Table

Practically speaking, being able to ask an efficient modeling tool to generate requirement traceability and verification matrices, and to perform an automated impact analysis when the requirements change, is a very important time-saver.

3. Other Ways to Represent Requirements

Nearly all other SysML diagram types can also be used to specify Requirements!

  • Use Case Diagram
  • Sequence Diagram
  • State Machine Diagram
  • Activity Diagram
  • Block Definition Diagram
  • Internal Block Diagram
  • Parametric Diagram

1. Use Case Diagram

The Use Case diagram describes the usage of a system (subject) by its actors (environment) to achieve a goal.

2. Sequence Diagram

The Sequence diagram can describe the flow of control between actors and the system (seen as a black-box) for a given scenario of a specific Use Case. This diagram represents the sending and receiving of messages between the interacting entities, called lifelines, where time is represented by the vertical axis.

3. State Machine Diagram

The State Machine package defines a set of concepts that can be used for modeling discrete behavior through finite state transition systems. The state machine represents behavior as the state history of an object in terms of its transitions and states. It can be used to specify the requested behavior of a system in terms of external events and responses.

4. Activity Diagram

Activity modeling emphasizes the inputs, outputs, sequences and conditions for coordinating other behaviors. It can be used to specify in detail the requested sequence of actions performed by the system during a specific Use Case.

5. Block Definition Diagram

The Block Definition Diagram defines features of blocks and relationships between blocks such as associations, generalizations and dependencies. It can be used at the specification level to capture the definition of blocks representing the system environment.

6. Internal Block Diagram

The Internal Block Diagram captures the internal structure of a block in terms of properties and connectors between properties. Ports are a special class of property used to specify allowable types of interactions between blocks. Such a diagram can be used at specification level to capture precisely the interfaces between the system and its environment.

7. Parametric Diagram

Parametric diagrams can be used to specify the domain or project constraints that will be enforced on the system.

Conclusion

A Requirements Model can provide information that helps determine if the requirements meet their desired attributes (such as unambiguous, understandable, correct, concise, traced, design-independent, verifiable, unique, complete, consistent, etc.). Moreover, the requirement diagram is the primary medium in SysML for conveying traceability among requirements as well as traceability from requirements to structures and behaviors in the system model. As you add new elements to the model, you will create relationships from those elements back to the requirements that drove the need for their creation. Establishing requirements traceability in this manner is an ongoing activity throughout design and development. And you may need to create a requirement diagram to display those relationships at any point during this work. So, it can be a real breakthrough for people who have not yet mastered a tooled Requirements Management process.

Requirements Management tools (like DOORS, RQA, etc.) are widely used to manage both requirements and the relationships among them. Requirements are often stored in a database. These tools are built to efficiently manage requirements information, i.e. handling attributes, filtering data and establishing and analyzing requirements traceability.

SysML includes a requirements modeling capability to provide a bridge between the text-based requirements that may be maintained in a requirements management tool and the system model. A combination of tool automation, the requirements management process and configuration management processes are used to synchronize the requirements between the requirements management tool and the model. This capability is intended to significantly improve requirements management throughout the lifecycle of a system by enabling rigorous traceability between the text-based requirements and the model elements that represent the system analysis, design, implementation and test cases. So why not try to use the best of both worlds?

References

  • [FMS] A Practical Guide to SysML, Friedenthal, Moore, Steiner; Morgan Kaufmann 2014
  • [OMG1] OMG SysML 1.4 (OMG Document Number: ptc/2013-12-09), p. 7
  • [OMG2] OMG SysML 1.4 (OMG Document Number: ptc/2013-12-09), p. 167
  • [OMG3] OMG SysML 1.4 (OMG Document Number: ptc/2013-12-09), p. 139

Comments (10)

  • From: Malte Plath
  • Date: 10. July 2018

What is the use of modelling requirements?

For fans of graphical modelling languages, it is certainly a relief that they can now model objects called "requirements".
In fact, this is a step away from model-based requirements engineering (MBRE). Since the requirements in SysML are merely opaque objects whose contents bear no relationship to the rest of the model. Take the example above: <<requirement>> Composite: "The system shall do A and B" - The content is just text, and it is a lucky coincidence for the author that the two component requirements state "The system shall do A" and "The system shall do B". If I were to change one of those sentences to "The system shall do C", nothing else would change.
A good tool might indicate that a contributor to <<requirement>> Composite has changed. But nothing in the model is tying the three occurrences of "A" in the example to one another. (The only "A" relevant to the model is as a name of the <<requirement>>.) So, SysML is just another notation for what other (more text-based) system have implemented as traceability links.
UML was originally designed to model real-world problems in order to derive software solutions for them, and therefore necessarily started out with actors and use-cases, activities and data flow. From a description of the real-word problem at this abstraction level more and more computer-oriented artifacts of UML are developed in the modelling process.
The SysML moves from that abstraction level to the meta level of modelling requirements as things with no internal structure and no relation between the intent of the requirement and the system under development. I agree with the author that this allows to express traceability relationships amongst each other an to other elements of the model. I cannot see, however, that it has anything to say about the other quality attributes of requirements like unambiguous, understandable, etc.
This is sad, since Parametric Diagrams, Block Definition Diagram and Internal Block Diagram are quite suitable for expressing requirements in terms of entities that are defined for the system under development. Requirements expressed in these diagrams might even lend themselves to (semi-)automatic quality assessment by checking if all elements and relations are consistent within the requirement and to other requirements.

I fully agree that requirements in SysML are opaque objects and their relevance relies on the skills of the author.
But is not it the same with classical Requirements Management tools as Doors?
SysML just wanted to add to UML simple constructs to represent text-based requirements and above all enable to relate them to other modeling elements.

And I also fully agree that a lot of SysML diagram types can be used to specify efficiently Requirements.
For instance, in my experience, one State Machine Diagram is often more valuable than twenty disconnected requirements...

  • From: Manoranjan Satpathy
  • Date: 30. June 2016

Validation aspects
Using SysML we not only specify the requirements, we also design a high level architecture and a design. There is need to say that the designs are consistent with the requirements.
A section need to be mentioned to illustrate this.

Thanks and regards
Manoranjan
IIT Bhubaneswar

Yes, sure, with SysML we also design architectures and designs. And we need to trace the design elements with respect to the requirements.
That is exactly the aim of the <<­satisfy­>> relationship that is explained in §2.2 (SATISFY RELATIONSHIP).
As the article was aimed for Requirements Engineering Magazine, it really shows a specific usage of SysML, focused on requirements capture and formalization.

Best regards
Pascal

  • From: Cesar Lazo
  • Date: 03. August 2015

Hello Pascal,

Thank you for the article, I enjoyed reading it. Could you provide and example of an automated impact analysis when the requirements change or say some words about how a Modelling tool is expected to perform the analysis?

Regards,

  • Cesar
  • From: – Author
  • Date: 19. August 2015

Hi Cesar,

There are several ways modeling tools can help with impact analysis.

First, of course, you have to model <<satisfy>> relationship between design elements and requirements in your modeling tool. Then you could simply select the changing requirements, search for the design elements that satisfy them, and display the results in a tabular or matrix view, as most of the tools enable to produce them.

Furthermore, if you wish to automate this process, most modeling tools provide an application programming interface (API) with which you can build your own additional tools. For instance, with Enterprise Architect, you have the "Automation Interface" that lets you access the internals of Enterprise Architect models. Some examples of tasks you could perform via the Automation Interface: execute ad hoc queries against the model, produce custom reports, etc. For more information, go to: http://www.sparxsystems.com/enterprise-architect/requirements-management/requirements-management.html. No Magic offers the same kind of capabilities: http://www.nomagic.com/products/magicdraw-addons/cameo-requirements-modeler-plugin.html.

Best regards
Pascal

  • From: Willi Kruger
  • Date: 22. June 2015

I am unfamiliar with the following diagrams. Block Definition Diagram and Internal Block Diagram. Is it possible to post some examples.

  • From: – Author
  • Date: 29. June 2015

Hi Willi,
you can find examples of bdd and ibd in the freely downloadable OMG SysML 1.4 Specification (document: OMG ptc/13-12-10), annex D (Sample Problem).

Usually, these diagrams are used for system design and architecture description, but they can also be used first to describe the context of the system under study.

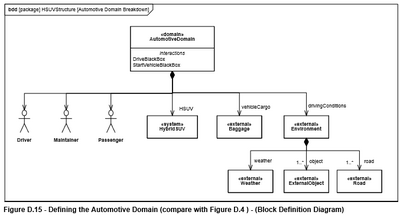

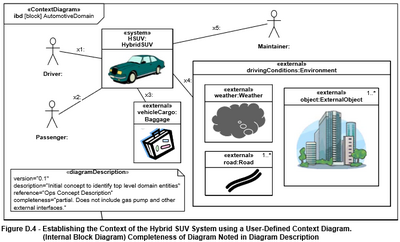

I have extracted two examples that can help define requirements for the Hybrid SUV System.

  • From: Stephan Roth
  • Date: 01. May 2015

Hello Pascal,

thanks for the article, it's a good read. I just have one remark: I think the arrow direction of the refine-relationship should be from the use case (the dependent element) to the SysML requirement (the independent element). The use case is an increase in detail, and depends on one or more functional requirements.

Regards,
Stephan

Hi Stephan

Both are possible and legal in SysML!
Here I was meaning that a requirement can refine a Use Case, adding non functional constraints for instance.

Cordialement

Pascal
